Isuzu NPR Towing Capacity

Isuzu NPR Towing Specs, Explained

The extraordinary Isuzu NPR towing capacity showcases the diverse range of trucks you can get from Nimnicht Isuzu Trucks. Ranging from 6,000 pounds with a fully stocked truck to over 15,000 pounds with the Isuzu NPR-HD and Isuzu NPR-XD,¹ the tow rating of this lineup is plenty for travel or utility trailers, small RVs, and equipment haulers. We're here to give you the tools to properly tow with your Isuzu NPR.

GVWR, GCWR & Towing Capacity

Unlike non-commercial trucks, most Isuzu models use Gross Vehicle Weight Rating (GVWR) and Gross Combined Weight Rating (GCWR) to show capability.

• GVWR: The maximum weight of the truck, including curb weight, passengers, and payload.
• GCWR: The GVWR, plus any additional weight from trailers.

Subtract your truck's total weight from its overall GCWR for a safe tow-rating approximation.

What Is the Best Isuzu NPR Towing Engine & Configuration?

The best engine for towing with the Isuzu NPR is the 5.2-liter V-8 diesel option (when equipped on the Isuzu NPR-XD). The gas 6.6-liter GMPT L8T is nearly as effective, but the Isuzu NPR-HD is just behind the XD in terms of towing capacity:

• 6.6-Liter Gas: Up to 15,346 pounds (Isuzu NPR-HD, Standard Cab, 109-inch wheelbase)¹
• 5.2-Liter Diesel: Up to 15,576 pounds (Isuzu NPR-HD, Standard Cab, 109-inch wheelbase)¹

More important than the engine is the rest of your configuration:

• Cabin: The Standard Cab will generally provide a better maximum tow rating than the Crew Cab, as there's less weight on the frame to compete with.
• Wheelbase: Since all Isuzu NPR, Isuzu NPR-HD, and Isuzu NPR-XD models have the same GCWR for their type, the shorter wheelbases provide a lower curb weight and better towing options.

What Affects Isuzu NPR Towing Performance?

As a chassis truck, Isuzu NPR towing capacity is largely based on the payload you bring along. Here are the primary factors you should watch out for:

• Payload: At maximum payload, any Isuzu NPR model can only tow 6,000 pounds.¹ For example, if your Isuzu NPR is at its maximum body payload of 6,846 pounds,⁴ it won't be able to reach its maximum possible towing capacity of 12,846 pounds.¹
• Curb Weight: When calculating maximum towing capacity, we do not include the weight of the passenger or any body you have on. Before hitching heavy trailers to your Isuzu NPR, check the weight of your body and expected passenger weight, then subtract it from your maximum.

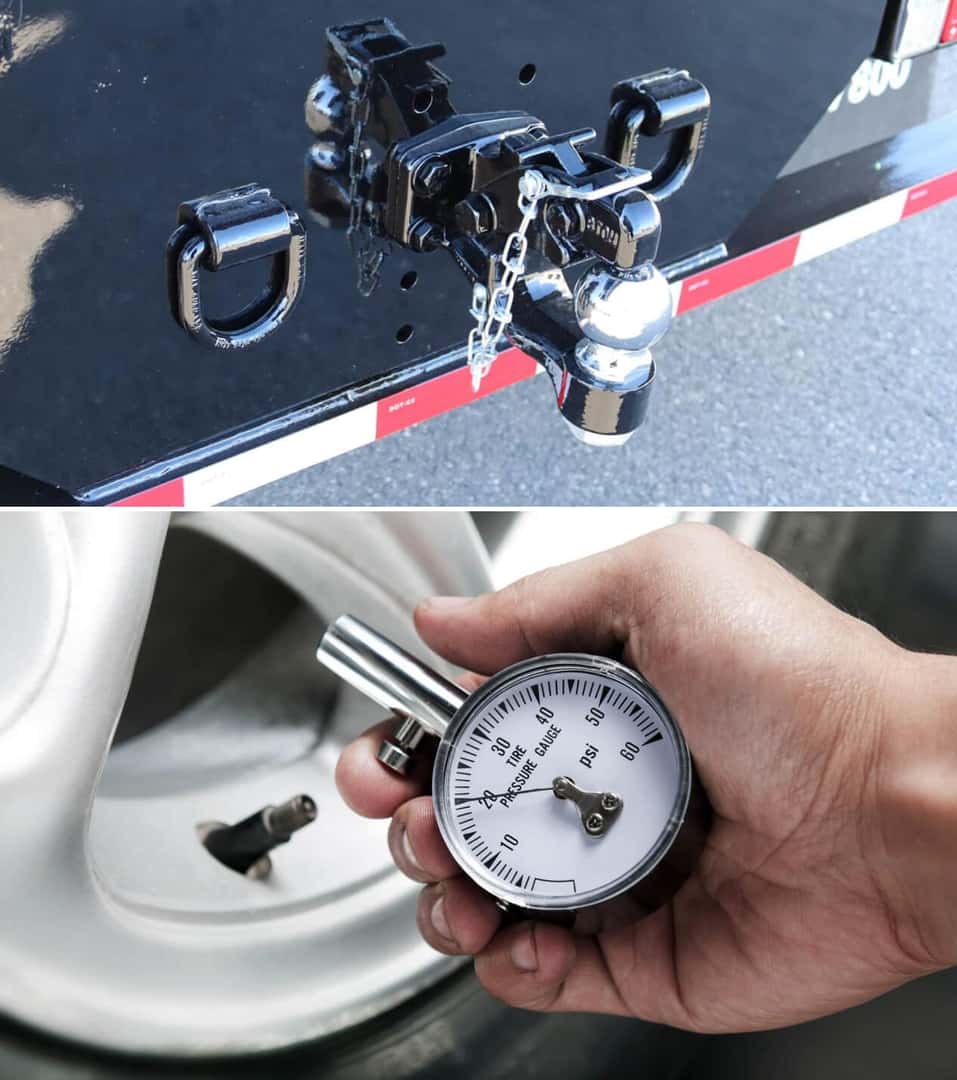

• Trailer Hitch: Many Isuzu trucks come without a trailer hitch, and some installed trailer hitches are not necessarily built to handle up to 15,576 pounds.¹ Please ensure that your trailer hitch can handle your chosen trailer. Our representatives can direct you to trusted partners for trailer hitches.
• Tire Pressure: Please ensure that your tires are properly inflated before takeoff.
• Proper Safety: Before driving, make sure a safety chain, securement chains, and a steering lock are in place. For proper towing protocol with Isuzu trucks, please contact our team.

Learn More at Nimnicht Isuzu Trucks

Towing is a careful art, and it's often better to play safe than sorry. Consider our Isuzu NPR vs. NQR guide if you think you might need a truck with a slightly higher GCWR.

Whether you have questions about the Isuzu NPR or want to know more about our heavy-duty Class 5 options in an Isuzu NRR vs. NQR comparison guide, we're the hub for all of your commercial truck needs.

Frequently Asked Questions

How much can an Isuzu NPR tow?

The Isuzu NPR can tow between 10,000 and 15,000 pounds, depending on payload.¹ The Isuzu NPR-HD Diesel has a GVWR of 14,500 pounds² and a GCWR of 20,500 pounds.³ With a curb weight of 6,030 pounds using the shortest wheelbase, the truck can theoretically tow up to 14,400 pounds when properly equipped. However, passenger and body weight affect the total.

Can an Isuzu NPR tow a trailer?

Yes, the Isuzu NPR is capable of towing a trailer. While well-known for their excellent payload ratings, even the base Isuzu NPR has a GCWR of 18,000 pounds.³ Subtracting curb weight, the baseline NPR has a maximum trailer capacity of around 12,846 pounds.¹ That is without significant cargo weight.

Does adding cargo affect Isuzu NPR towing capacity?

Yes, adding cargo and passenger weight affects what the Isuzu NPR can safely tow. While these models can readily tow over 10,000 pounds,¹ that assumes they are not near their maximum body payload. For safe hauling, subtract your model's GVWR from its GCWR to determine maximum tow ratings with maximum cargo.

¹When properly equipped.

²GVWR ratings assume vehicles are properly equipped with manufacturer-recommended towing setups. Actual weight capacities may vary.

³GCWR ratings assume vehicles are properly equipped with manufacturer-recommended towing setups. Actual weight capacities may vary.

⁴Max payload varies based on accessories and vehicle configuration.
