How To Check Coolant On An Isuzu N-Series

Your Complete Guide to Isuzu N-Series Coolant Checks and Changes

Wondering how to check coolant on Isuzu N-Series trucks without a service center appointment? You can DIY this inspection before your next trip by following the steps outlined on this page. If you'd rather turn the job over to a pro, Nimnicht Isuzu Trucks is always here to help.

First, the Basics: Where Are Isuzu N-Series Coolant Tanks?

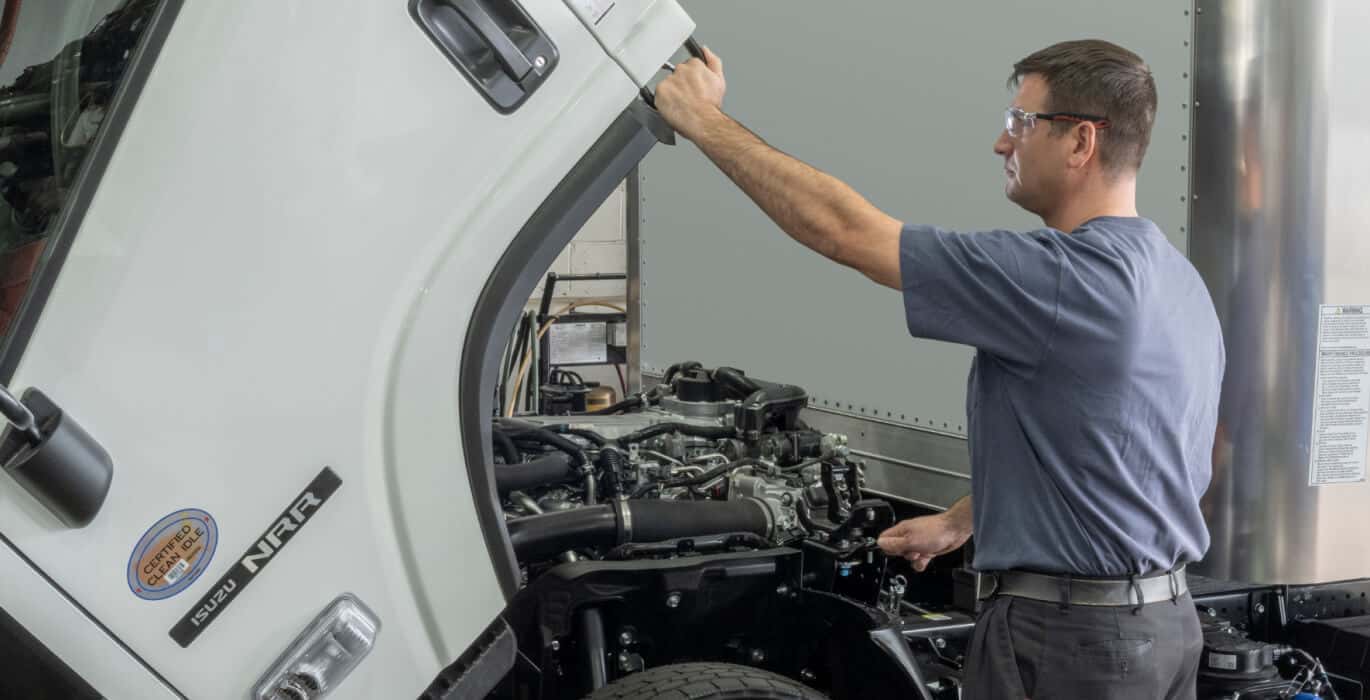

Isuzu trucks have cab-over-engine layouts, which means that the majority of their vital components are located beneath the cab itself – but Isuzu N-Series coolant tanks are located just behind and below the passenger side of the truck cab. Isuzu N-Series coolant reservoirs can be accessed without tipping your cab forward. This design means you can save yourself time and energy by leaving the cab in place while checking or refilling coolant.

N-Series Maintenance: How Often Should Isuzu N-Series Coolant Be Checked?

Isuzu engineers recommend checking your N-Series truck's coolant levels every 15,000 miles alongside tire rotations and air filter replacements. However, some N-Series owners prefer to keep tabs on their coolant levels more frequently, so they peek at their tanks once per week or every time they stop for fuel.

Because the coolant reservoir is so easy to access on N-Series models, checking levels often takes just seconds of your time. Isuzu also recommends completely flushing and changing your coolant fluid every 30,000 miles, which is about the same time your truck's transmission and brake fluids are replaced as well.

N-Series Specifics: Filling to the Right Coolant Capacity

Keeping your truck's coolant at the right level takes nothing more than a visual check. On the side of your model's coolant reservoir, you'll see two distinct horizontal lines. The bottom line indicates the minimum amount of fluid that should be in the tank, and the top line shows the maximum. This holds true across the entire N-Series family.

When it comes to changing your truck's coolant, Isuzu NPR light-duty models tend to need less than heavier-duty designs like the Isuzu NQR. Coolant capacity for NPR trucks usually ranges from 11 to 14 quarts, while the Isuzu NRR and Isuzu NQR coolant reservoir can typically hold 15 to 20 quarts.

Is There a Specific Isuzu Coolant Type That N-Series Trucks Need?

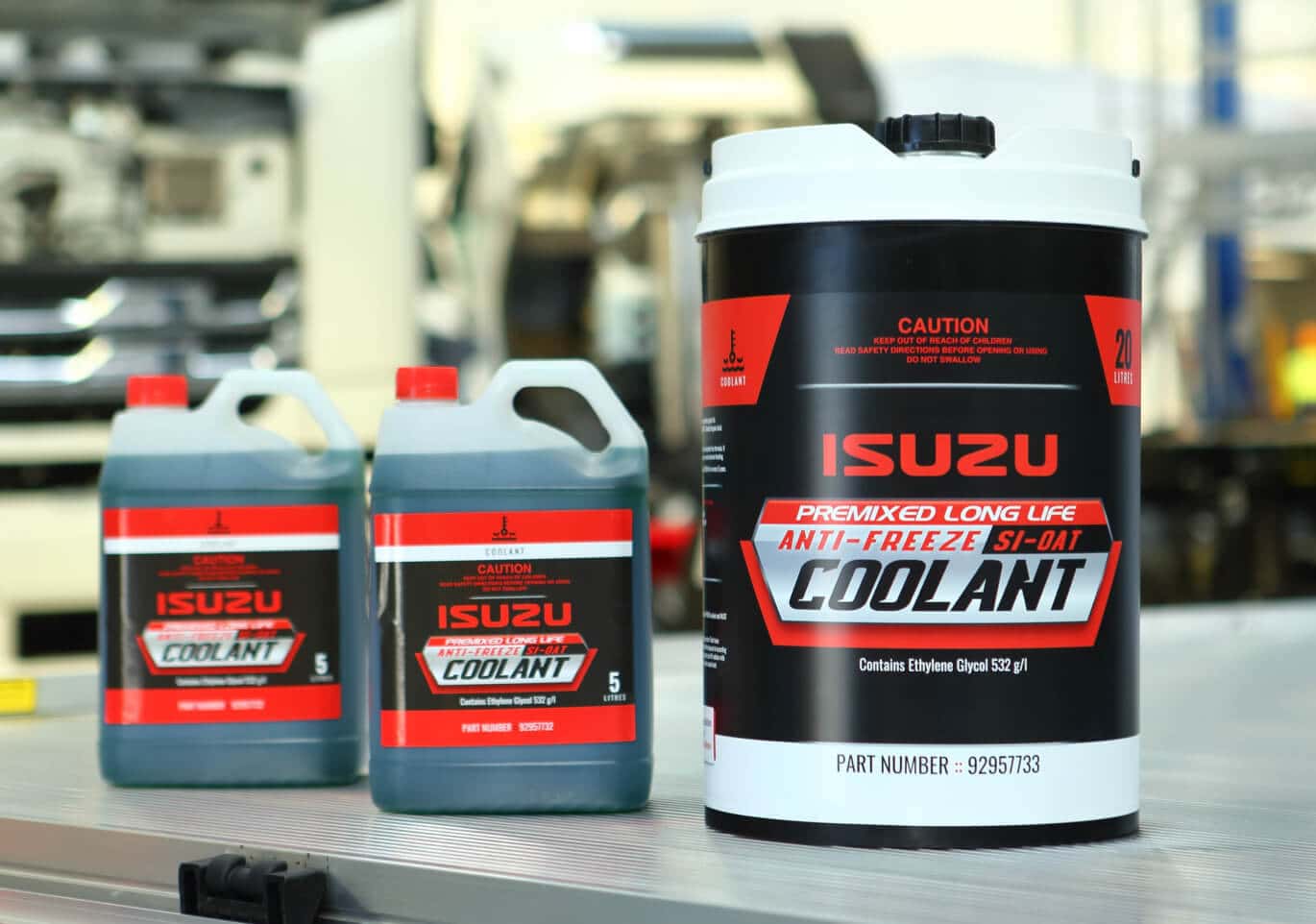

Isuzu N-series trucks typically use an ethylene glycol-based long-life coolant that is green in color. Regardless of whether you own or drive an NPR, NQR, or NRR, you should be able to share coolant between all three models. That said, to make sure you have the right coolant type for your Isuzu N-Series, it's important to check your owner's manual or contact our Nimnicht Isuzu Trucks service center. You are also welcome to purchase the correct Isuzu coolant type from our dealership and refill it yourself.

Nimnicht Isuzu Trucks: Your Home for Isuzu N-Series Maintenance

Has this page helped you understand how to check coolant on Isuzu N-Series trucks? We hope so! Taking care of a massive machine like an NPR, NQR, or NRR is a serious job, but following the steps we discussed above can make coolant checks and changes a breeze. As always, if you need any additional support for your N-Series model, feel free to reach out and schedule service. You can order Isuzu NPR, Isuzu NRR, and Isuzu NQR coolant or any other Isuzu parts you need through our dealership as well!

Frequently Asked Questions

How do I check the coolant level on an Isuzu N-Series?

Checking your N-Series truck's coolant level is simple: Walk around to the passenger side of your cab and look down. The coolant tank, usually a white plastic reservoir, should be visible just behind and slightly beneath the cab itself. If you can see liquid between the minimum and maximum fill lines on the reservoir, your truck has plenty of coolant.

Should I check Isuzu N-Series coolant when the engine is hot or cold?

You should always check N-Series coolant, transmission fluid, oil, and any other fluid when your truck's engine is cold. Hot or even warm engines can give false readings or seriously injure you if you try to remove a hot cap. We recommend checking your coolant before starting your engine so that if more needs to be added, you can do it safely.
